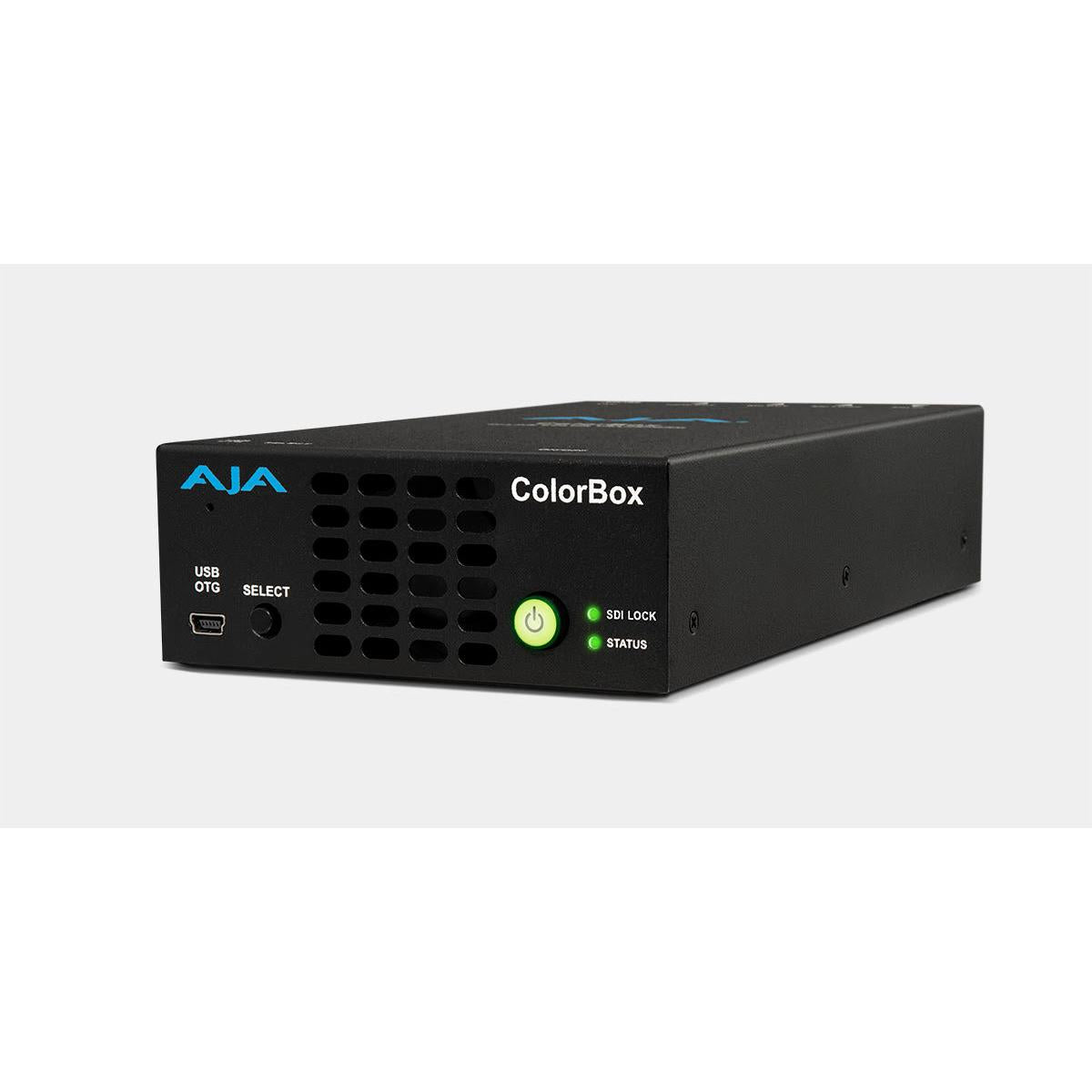

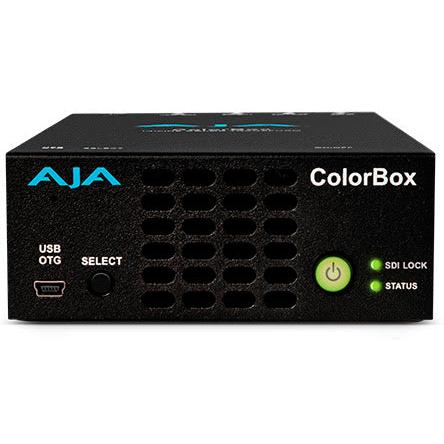

The AJA ColorBox HDR/SDR Colour Converter ia a portable, high-performance colour management device with advanced algorithmic colour transforms and LUT processing capabilities, delivering precise and accurate colour space conversions for live broadcast, live events, on-set production and post production. ColorBox enables a range of HDR and SDR conversions and allows DITs and colourists to easily load, modify, and save looks, and create reference images for dailies to ensure colour accuracy across all production stakeholders and creative vendors.

ColorBox Feature Highlights

• Up to 4K/UltraHD 60p 10-bit YCbCr 4:2:2 and 30p 12-bit RGB 4:4:4 signal support.
• 12G-SDI I/O, with loop out, and HDMI 2.0 output
• 5 Modes available: AJA Color Pipeline, Colorfront, NBCU, BBC HLG, ORION-CONVERT.
• Extensive colour processing using AJA Color Pipeline: 1D LUTs, 3x3 Matrices, and 3D LUT nodes for image manipulation/correction.
• Optional licenses for varying image processing needs, including BBC HLG LUTs and ORION-CONVERT with optimized floating point processing provides greater precision that can be achieved by standard LUT boxes.
• Light-weight portable form factor that easily fits on the desktop or up to 4 units in a 1RU rack.
• Intuitive and convenient web browser-based user interface with Video Preview for confidence monitoring. 4K/UltraHD Frame Store capture and recall of 16-bit .TIFF, .JPEG, or .PNG files.
• Powerful built-in test pattern generator for simple setup and signal path validation.
• Extensive API/Software Development Kit (SDK) for third-party control of every parameter.
• The ability to key information onto a processed output with Overlay for local use or capture with customizable user fields.
• Ultra-low latency to ensure sources remain within the timing window of the downstream switcher in live production workflows.
• HDMI 2.0 output for 4K/UltraHD HDR enables cost-efficient monitoring on consumer displays.
• USB OTG port and third-party WiFi adapter provides wireless access to the web UI when a wired Ethernet connection is not available.
• ANC management with a user-defined field that can be overlaid or embedded in frame store .tiff files.
• Three Year Warranty
