Blackmagic Design Video Assist 12G HDR Monitor | Recorder - 7 Inch

Blackmagic Design  |  SKU: BLA-HYPERD/AVIDA12/7HDR  |  UPC: 9338716006438
$1,199.00 $1,315.00
Tax included Shipping calculated at checkout.

Shipping Options
Shipping Methods & Estimated Delivery Times
  •  Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
  •  Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
  •  StarTrack Express – 2–7 business days, depending on location.
  •  StarTrack Premium – Next business day between capital cities and major metro areas.
  •  Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Blackmagic Design Video Assist 7 Inch 12G-SDI/HDMI HDR Recording Monitor adds professional monitoring and high-quality recording to virtually any camera. It features a bright 7 Inch, 1920 x 1200 display with 2500 cd/m² brightness to help you frame and focus your shots and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. The monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2, and up to 16 channels of embedded 24-bit 48 kHz audio. Blackmagic Raw recording is available for select Canon, FUJIFILM, Nikon, Panasonic, and SIGMA cameras.



The Video Assist records using dual high-speed UHS-II SD slots to SDHC/XC memory cards. You can also use the USB 3.1 Gen 1 Type-C port to record to an external drive, as well as use it for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD and DNxHR codecs.



USB Webcam Output with Firmware Update 3.3

In firmware version 3.3, Blackmagic has introduced USB webcam output, allowing for the Video Assist to send a full 1080p signal to your computer over USB using a streaming-friendly format. Also added is audio monitoring channel selection. This 7" version also gains XLR audio mapping to different channels and XLR external timecode.

Bright 7" Full HD Display

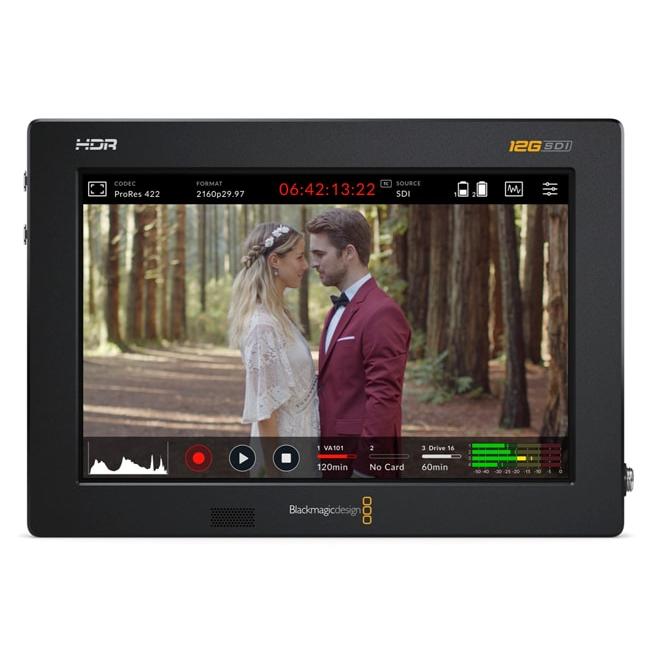

The display features a bright 7" 1920 x 1200 display with 2500 cd/m² brightness for evaluating your shots. On-screen controls allow you to vary the brightness and contrast depending on the shooting situation.

4K Support

Monitor and record DCI 4K, UHD 4K, 2K, and HD resolutions with 10-bit 4:2:2 HDR support. 3D LUTs are also supported

12G-SDI and HDMI Connections

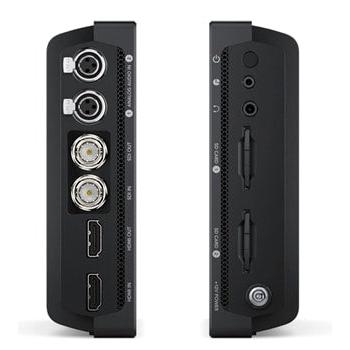

Video and audio are captured using 12G-SDI and HDMI 1.4 inputs, allowing you to record from professional cameras and camcorders, as well as popular DSLRs and mirrorless cameras. The 12G-SDI BNC input even allows you to monitor Ultra HD footage. Loop-through outputs are provided so you can simultaneously display the live video or recorded clips on larger screens like 4K, 2K, or HD broadcast monitors or HDMI projectors while you monitor and record on the Video Assist. Up to eight channels of audio are embedded in the output and can also be monitored on headphones using the 3.5mm stereo jack.

Power Options

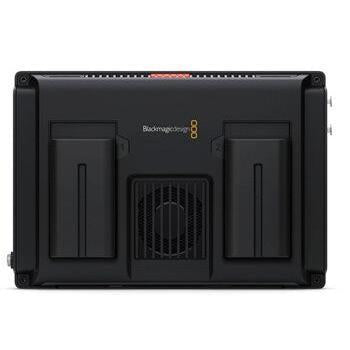

A universal power supply is included so you can use the Video Assist anywhere using the 12 VDC input, or run off two Sony L-series type batteries in the dual battery slots.

Audio Input

The monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording.

Touchscreen Interface

The display provides intuitive capacitive touchscreen controls. Swipe gestures make it simple and quick to show or hide settings, such as capture resolution and format, as well as screen brightness and contrast. You'll have access to additional controls, recording status, histogram, waveform, vectorscope, battery status, and more. The controls have a semi-transparent overlay, so you can still be able to keep an eye on every part of your shots.

10-Bit 4:2:2 ProRes and DNxHD Recording

The Blackmagic Video Assist records your video at the 10-bit 4:2:2 quality. Files are recorded to dual high-speed UHS-II slots using SDXC/HC cards in Apple ProRes (HQ, 422, LT, Proxy) or DNxHD and DNxHR codecs. These are industry-standard formats, so you can start editing immediately without having to convert the files.

Blackmagic Raw

This monitor supports Blackmagic Raw recording for select cameras including:



  • Canon EOS C300 Mark II
  • FUJIFILM GFX100, FUJIFILM GFX100S
  • Nikon Z6, Z6 II, Z7, Z7 II
  • Panasonic AU-EVA1
  • Panasonic LUMIX BS1H
  • Panasonic LUMIX S1, S1H
  • Panasonic LUMIX S5
  • SIGMA fp, SIGMA fp L



Key Features:

  • Supports live production, digital signage and archive use.
  • Modern design with fast to use touch screen controls.
  • Upgrades cameras to better monitoring and better record codecs.
  • Large LCD screen for digital film style focus assist tools.
  • SD/USH-II card support for commonly available media.
  • Records direct to external USB-C media disks.
  • 12G-SDI and HDMI for recording in SD, HD and Ultra HD.
  • Advanced HDR support with bright 2500nits wide gamut LCD.
  • Built in scopes include waveform, vector, parade and histogram.
  • Latest Multi Rate 12G-SDI technology for SD, HD and Ultra HD.
  • 3D LUTs can be applied for both monitoring and recording.
  • Standard open file formats compatible with popular software.
  • Records Blackmagic RAW from supported third party cameras.
  • Professional multi channel digital and analog audio.
  • Localized for 11 popular international languages.
  • Works with popular NLE software such as DaVinci Resolve







Perfect for Digital Cinema, Live Recording and Monitoring

With its amazing versatility, Blackmagic Video Assist 12G is also great for recording from cameras, or even as a clip player! As the files are compatible with the HyperDeck disk recorders, you can even use Video Assist as a broadcast field recorder, or an ultra-portable broadcast scope! Video Assist is a fantastic broadcast solution because you get both HDMI and 12G-SDI inputs plus it has built in scopes and 3D LUTs! The scopes also help you QA masters to ensure compliance with broadcast standards before streaming and broadcast





Upgrade to Better Recording for Digital Cameras

Blackmagic Video Assist 12G HDR is an ideal upgrade for cameras, as it's super bright 2500nit display is bigger than the tiny displays found on consumer cameras, plus you're also adding professional focus assist features and better-quality file formats. Video Assist is also a great solution for professional cameras because you can use it to upgrade older broadcast cameras to modern file formats used on the latest editing software. No matter what editing software you use, Video Assist lets you support them all, as you can record in Apple ProRes, Avid DNx and Blackmagic RAW. With both HDMI and 12G-SDI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. Then, on supported cameras, you can even upgrade to RAW style workflows with Blackmagic RAW!
