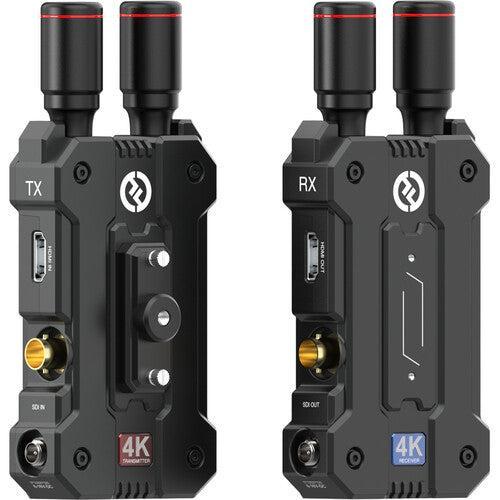

Transmitter |
Interface: | Antenna (RP-SMA male) |
HDMI 1.4 b input (Type-A female) |
3G-SDI input |
DC input (2.0mm core socket) |
USB Type-C (USB 2.0 OTG) |
Voltage | DC input: 6V–16V |
USB Type-C: 5V/2.5A |
(not supporting the QC and PD protocols) |
NP-F battery: 6.8V–8.4V |
Power consumption | <8.5W (typical) |
Weight | 223g (7.9oz) (excluding the antennas) |
Dimension (LxWxH) | 115x65x32mm (4.5"x2.5"x1.3") |
Operating frequency | 5.1GHz–5.8GHz |
Modulation mode | 802.11n |
TX power | 21dBm (max.) |
RX sensitivity | N/A |
Bit rate | 8Mbps–20Mbps |
Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) |
Range | 450ft (150m) (test data in an open, interference-free outdoor environment) |
Bandwidth | 20MHz |
Audio format | 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b |
Operating temperature | –10°C to 60°C |
Storage temperature | – 40°C to 60°C |
ESD protection | Contact discharge: ±6kV; air discharge: ±8kV (test data) |
Receiver: |
Interface | Antenna (RP-SMA male) |
HDMI 1.4 b output (Type-A female) |
3G-SDI output |
DC input (2.0mm core socket) |
USB Type-C (USB 2.0 OTG) |
Voltage | DC input: 6V–16V |
USB Type-C: 5V/2.5A |
(not supporting the QC and PD protocols) |
NP-F battery: 6.8V–8.4V |
Power consumption | <5W (typical) |
Weight | 223g (7.9oz) (excluding the antennas) |
Dimension (LxWxH) | 115x65x32mm (4.5"x2.5"x1.3") |
Operating frequency | 5.1GHz–5.8GHz |
Modulation mode | 802.11n |
TX power | 21dBm (max.) |
RX sensitivity | –90dBm |
Bit rate | 8Mbps–20Mbps |
Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) |
Range | 450ft (150m) (test data in an open, interference-free outdoor environment) |
Bandwidth | 20MHz |
Audio format | 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b |
Operating temperature | –10°C to 60°C |
Storage temperature | – 40°C to 60°C |
ESD protection | Contact discharge: ±6kV; air discharge: ±8kV (test data) |
