Hollyland Mars M1 Enhanced Wireless Transceiver Monitor

The Hollyland Mars M1 Enhanced is a compact 5.5" (14 cm) wireless transceiver monitor that lets you transmit, receive, and view high-quality video wirelessly. It has a bright touchscreen display, a new low-profile antenna, and a feature to instantly review up to 2 minutes of video. The Mars M1 Enhanced can work with other Hollyland transmitters/receivers up to 137 meters away and supports monitoring on smartphones and tablets via the HollyView app.

The monitor supports up to DCI/UHD 4K30 video input via its HDMI input, and it features an HDMI loop output and a 1080p SDI input that supports multiple broadcast drop-frame frame rates. Multiple imaging tools are available using the built-in HollyOS firmware, including scopes, peaking, and storage of 3D LUTs on the monitor. It can be powered using its built-in L-series battery plate or via its DC input. It also features a DC power output, so you can power your camera or other gear.

Display with Professional Colour Calibration

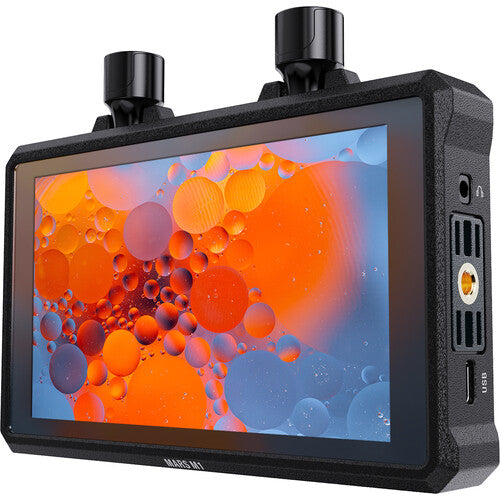

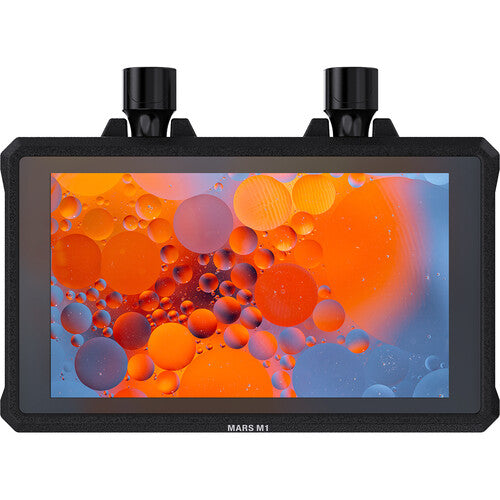

The Mars M1 Enhanced is designed with a 5.5" 1920 x 1080 resolution touch LCD screen with 1000 cd/m² brightness. Professional colour calibration is performed during manufacturing, and multiple-level colour temperature adjustments are available. The screen supports the Rec. 709 colour gamut for excellent colour rendition, 16:9 aspect ratio, and 16.7M natural colours.

Compatibility

The Mars M1 Enhanced is an all-in-one transmitter, receiver, and monitor solution that M1 can be used either as a transmitter or a receiver. As well as transmitting between two M1 units, the M1 can also transmit and receive from all Mars 300 Pro, Mars 400S Pro, and all Mars 4K models, as well as smartphones and tablets with the HollyView app.

Input/Output

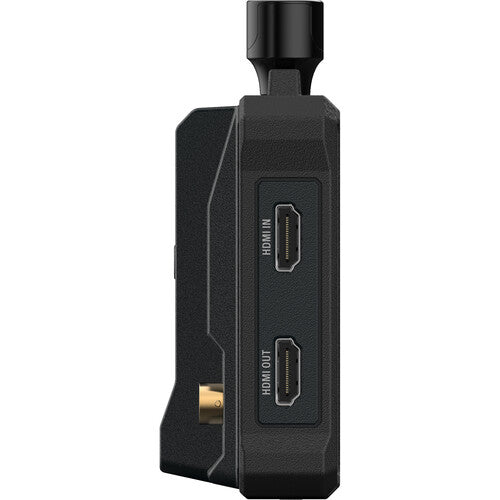

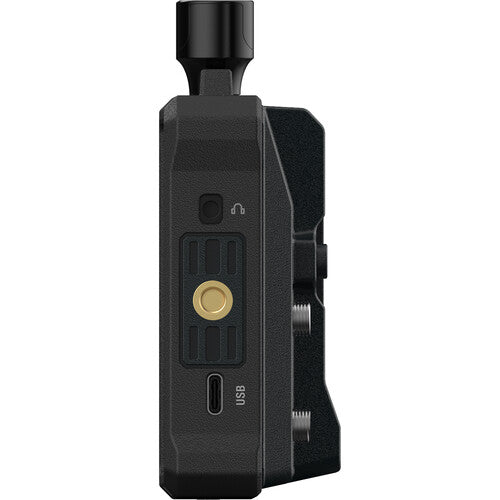

The Mars M1 Enhanced features HDMI input and HDMI loop output, one 3G-SDI input, as well as a 3.5mm headphone output.

Wirelessly Transmit and Receive Video

The Mars M1 Enhanced supports up to DCI/UHD 4K30 HDMI input and output for expanded connectivity and compatibility. The SDI input supports up to 1080p input and provides expanded frame rate flexibility for both broadcast and production frame rate standards and compatibility through production and post-production.

Trigger Recording and Video Playback

The Mars M1 Enhanced is engineered for automatic trigger recording and video playback. Replay your video wherever and whenever you want to ensure it is captured at its finest quality. The video recording function supports up to two minutes of recording time. NOTE: The recorded video cannot be exported and will be deleted when the device is turned off or when a new recording is started.

3D LUT File Import

Selectable 3D LUT presets are available to map the colours to the monitor for a consistent, high-quality effect. You can also load your custom LUTs.

Smart Channel Scan

Smart Channel Scan enables you to find the interference-free option for a stable connection experience. The optimum channel is selected automatically upon startup.

Wireless Range

Transmission distance up to 450 feet (137m).

HollyOS

Powered by Hollyland's HollyOS operating system, the Mars M1 Enhanced offers a comprehensive suite of advanced monitoring tools, such as waveform, vectorscope, zebra pattern, aspect mark, anamorphic de-squeeze, crosshatch, and more. Each of these tools provides you with complete control over your image, offering an opportunity to fine-tune every shot to your specific preferences.

Power Options

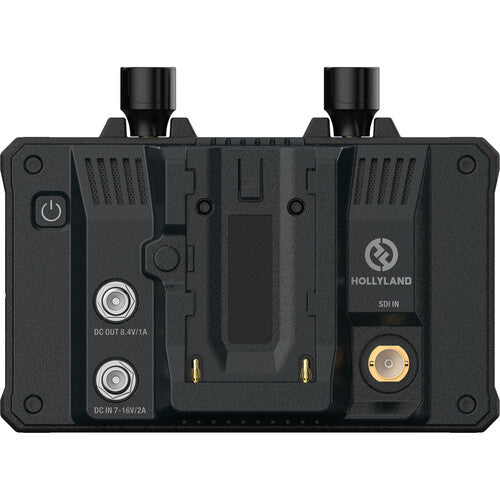

The Mars M1 Enhanced supports three types of power supply: 7 to 16 VDC power input, L-series (NP-F970/750/550) battery (purchased separately), and via a D-Tap connector with a separately available power source.

App Monitoring

• The Hollyview app for Android and iOS allows you to monitor your transmission on a smartphone or tablet. It allows you to transmit to apps and receivers and receive from transmitters such as the Mars 400S Pro or Mars 4K in the following configurations:
• One Mars M1 Enhanced TX can send signals to two other Mars M1 Enhanced set in RX mode
• One Mars M1 Enhanced TX can send signals to one other Mars M1 Enhanced set in RX mode and up to two devices running the HollyView app
• One Mars M1 Enhanced TX can send signals to four devices running the HollyView app
• One Mars M1 Enhanced TX can send signals to two other Hollyland Mars 400S Pro/Mars 300 Pro/Mars 4K RX units
• One Hollyland Mars 400S Pro/Mars 300 Pro/Mars 4K TX unit can send signals to one Mars M1 Enhanced set in RX mode and up to two devices running the HollyView app

Fan Mode

The Mars M1 features a built-in fan with the choice to select Auto or Mute in the menu. Mute mode keeps the monitor working with lower fan noise without affecting video recording.
