Hollyland Pyro 7 Dual-band Wireless Transceiving Monitor & Recorder

The Hollyland Pyro 7 is a versatile wireless video powerhouse combining advanced codec technology with robust 2.4 GHz and 5 GHz transmission for exceptional performance. This all-in-one device, featuring a bright 18 cm touchscreen, dual battery plates, and a transmission range of approximately 400 meters, seamlessly integrates transmitter, receiver, recorder, and monitor functions. With enhanced imaging tools, SD card recording, HDMI/SDI connectivity, RTSP streaming, and sending to up to four receivers, the Pyro 7 is a professional-grade solution for capturing and monitoring video content, from small-scale productions to large-scale commercials.

Key Features:

• Multi-Device Connectivity: In Broadcast mode, connect one transmitter to up to four receivers for simultaneous monitoring.
• Advanced Wireless Transmission: Operates on 2.4 GHz and 5 GHz frequency bands with a minimum latency of 60ms in interference-free environments.
• Extended Range: Achieve up to 400 meters (1,300 feet) line-of-sight (LOS) range; 200 meters (650 feet) in Broadcast mode.
• Video Recording and 3D LUTs: Supports video recording and loading of 3D LUTs for real-time colour grading during recording or output.
• Flexible Input/Output Options: HDMI and SDI inputs and outputs, including HDMI Input and Loopout (4K30) and SDI Input and Loopout (1080p) for Transmitter mode; HDMI Output (1080p) and SDI Output (1080p) for Receiver mode.
• Power Supply Flexibility: Choose from DC power (locking) or NP-F batteries, with a replaceable battery plate for extended battery life.
• Streaming Capabilities: Transmitter mode supports streaming via a wireless network card.
• Automatic Frequency Hopping: Ensures clear frequency channels by auto-selecting upon power-on.
• Professional Image Analysis: Features luma waveform, RGB waveform, vectorscope, and histogram.
• Comprehensive Monitoring Assist Functions: Includes zebra pattern, focus assist, false colour, aspect mark, anamorphic de-squeeze, zoom-in, centre mark, crosshatch, video recording, and image overlay.

Broadcast Mode

The Pyro 7 features wireless broadcast technology that enables one transmitter to connect to up to four receivers with stable, line-of-sight signals. When Broadcast mode is activated, the transmitter can transmit signals to a maximum of four receivers, and when it's deactivated, the transmitter can transmit signals to up to two receivers and two mobile devices.

Large, Bright Monitor

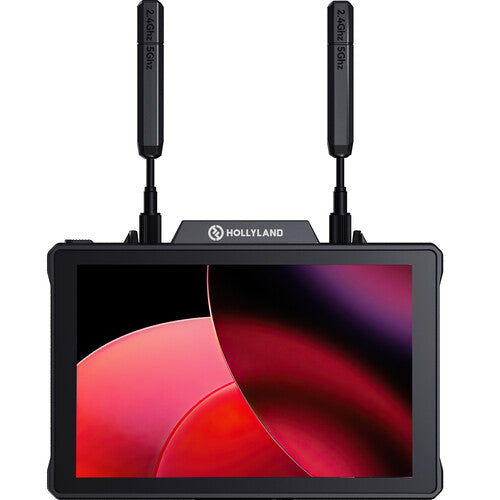

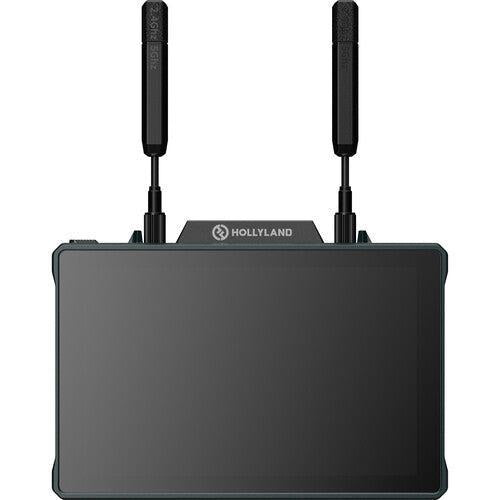

The Pyro 7 features an 18 cm display with a brightness of 1200 cd/m², so it's clearly viewable whether you are in bright sunlight or dim environments. The screen brightness is adjustable for optimal performance.

Versatile I/O

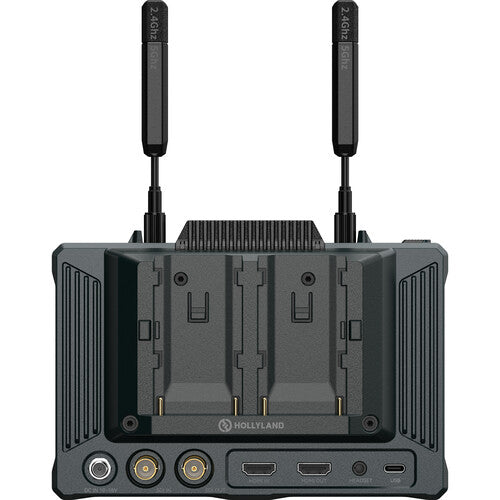

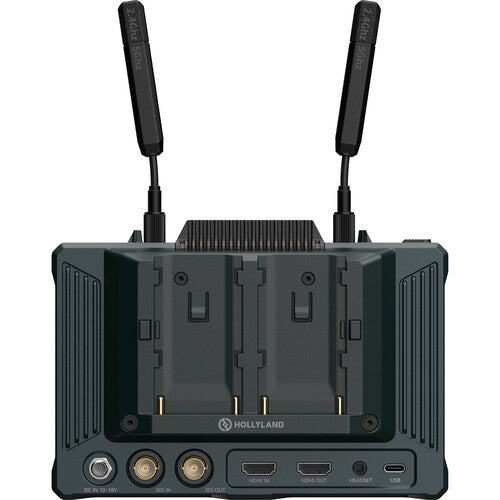

The Pyro 7 can be switched to be a transmitter or receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it features one SDI output, one HDMI output, and one SDI loop output.

Quick Source Switching

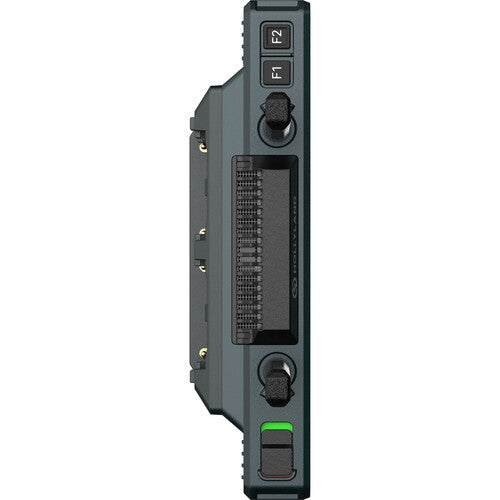

The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and instantly switch monitoring between two cameras by utilizing two customizable buttons.

Long Transmission Range

Utilizing 2.4 and 5 GHz dual-band technology, the Pyro 7 features a stable line-of-sight transmission range of up to 400 meters with a minimal transmission latency of 60ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimizes the image with a stable bitrate up to 12 Mb/s, even up to 400 meters away.

Auto Dual-Band Hopping (ADH)

With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the clearest channel for reliable, uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions.

RTMP Streaming

With built-in RTMP streaming, you can easily stream video to popular live broadcast or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.

Video Recording to SD Card

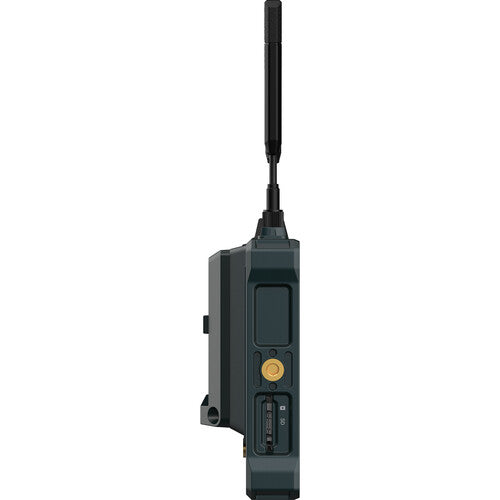

The Pyro 7 features an SD card slot that supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.

Image Tools

The custom shortcut key feature that can be used for dual-view monitoring can also be used to quickly launch image tools such as waveform, recording, focus assist, and other image analysis functions.

Durable Yet Lightweight Construction

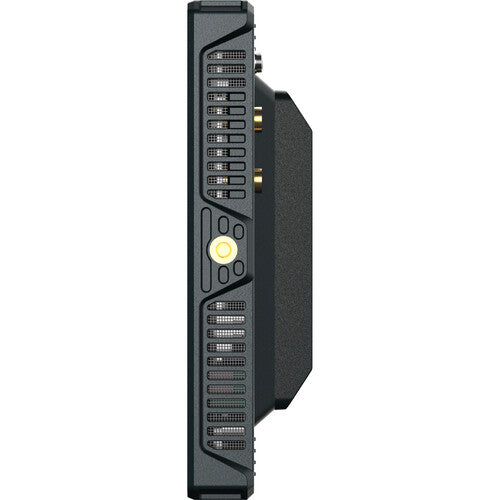

The case of Pyro 7 is made of aerospace-grade magnesium-aluminium alloy with a robust, rigid design that is 30% lighter and better at heat dissipation than aluminium-only models.
