Features at a Glance

• Up to YCC 4:2:2 and 10-bit colour depth
• USB 3.0 Type-C connects to your PC as a video input
• USB 3.0 Type-A connects to a web camera as a video input for encoding
• Control PTZ camera via USB expansion and serial RS-232/485/422
• Adopts network control protocols such as Sony VISCA, PELCO-D, and PELCO-P
• 1.96" LCD screen and scroll wheel
• Two Ethernet interfaces, one supports PoE
• Supports NDI and NDI|HX 2.0
• TF storage expansion to record encoded NDI video into a TF card
• Mount via cold shoe or V-mount accessory

Both NDI and NDI|HX to Cover all your needs

Adopting the leading FPGA technologies, advanced-level AVC/HEVE algorithm, and NDI algorithm, the Kiloview N60 supports 4Kp60 format encoding/decoding with both NDI High-bandwidth and NDI|HX, meeting all your demands and applications of IP-based video transmission.

Encoding & Decoding Converter

Supports encoding/decoding of H.264 / H.265 into NDI / NDI|HX.

In the encoding mode, it can encode a 4K HDMI signal into an NDI or NDI|HX video stream.

In the decoding mode, it will automatically adapt the NDI and NDI|HX format as your end needs.

Better colour performance: Up to YCbCr 4:2:2 and 10bits color depth

The N60 supports a professional YCbCr 4:2:2 colour space and a 10-bit colour depth (the common 8-bit colour depth is also available).

N60 promises higher colour and image quality, particularly to fulfil the needs in the broadcasting and medical imaging industries that bear no colour fringing.

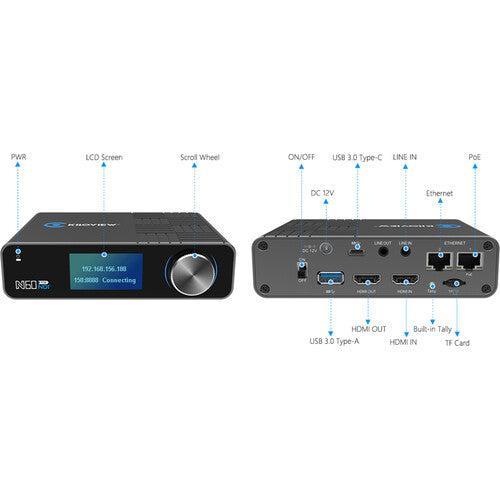

USB Extension
The N60 has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for you to :

• Access a Web Camera via USB 3.0 Type-A as a video input source for encoding;
• Connect to your PC via USB 3.0 Type-C as a USB video input;
• Control PTZ Camera with a USB keypad.

With USB extensions available, you can achieve unlimited possibilities by seamlessly bringing NDI technology to your applications such as video conferencing, image processing, PTZ camera control, and more.

* Note: As an advanced function, you need licenses for full functions.

High quality ultra-low latency of end-to-end transmission

With ultra-low end-to-end latency, KILOVIEW N60 is a powerful bi-directional converter that supports every second of your 4K video transmission over IP.

• Encoding 4K HDMI/USB video signal into NDI or NDI|HX stream.
• Decoding NDI or NDI|HX streams into HDMI.
• Loop-out for view on a monitor or projector.

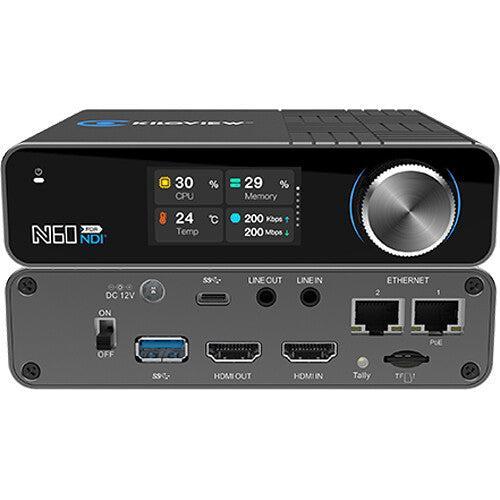

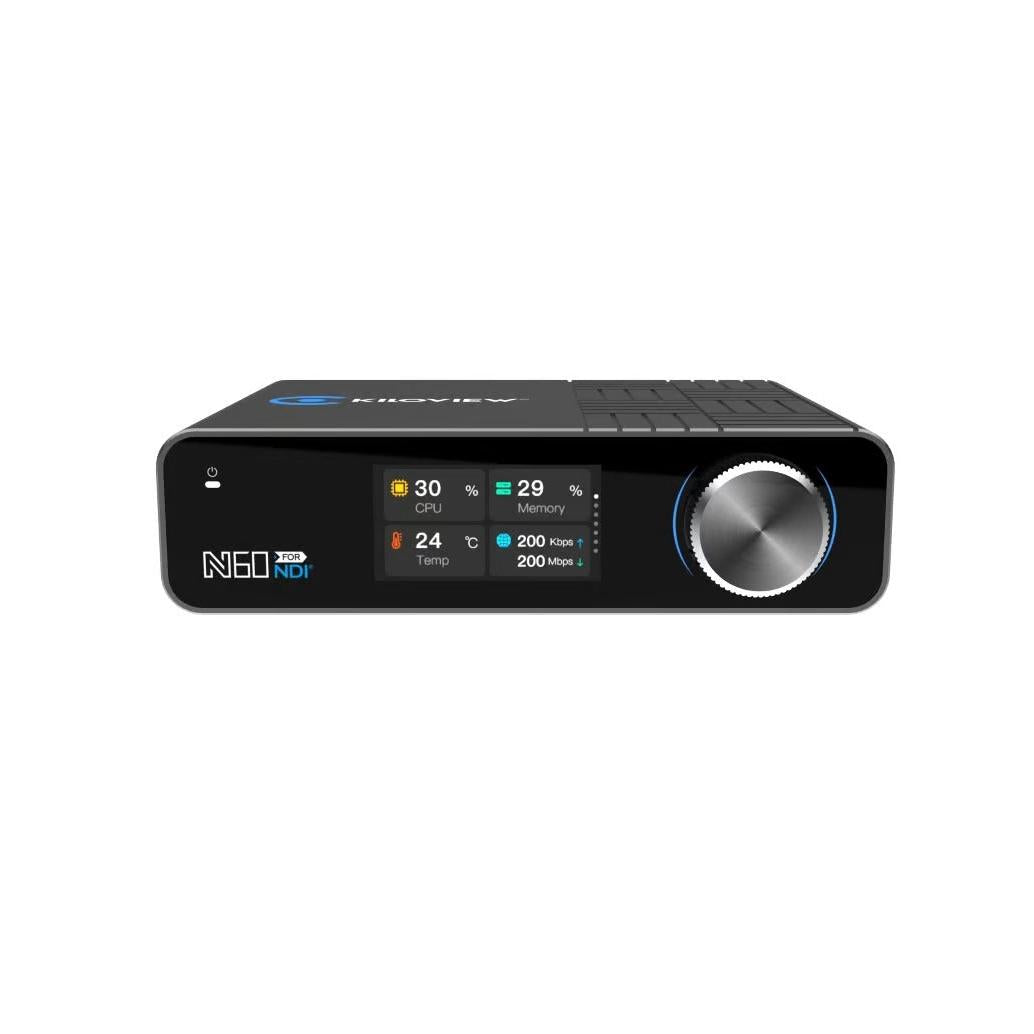

Large-sized Color LCD Screen and Scroll Wheel

A big colour LCD screen and a scroll wheel enable you to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.

At the back of the N60, there is a built-in small tally to show the status.

Audio and Intercom

The Kiloview N60 supports an extended USB audio interface (e.g., USB headset), to let you have an end-to-end real-time intercom to other Kiloview device operators and the associated Kiloview Intercom System (KIS) group.

PTZ Control

The N60 supports PTZ control through USB to serial RS-232/RS-485/RS-422.

N60 also adopts Network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.

Power Supply: PoE and DC

The N60 has 2 interfaces of Ethernet, one supports PoE（IEEE 802.3AT）power supply.

Just plug in a network cable, and you can easily access both the power supply and network transmission.

It also supports DC 12V power supply and can easily power the device with a portable charger or camera battery.

TF Storage

The N60 provides a TF storage extension that eases your recording of encoded NDI video directly into a TF card (local recording supports MOV. format).

TF storage guards your recording and prevents you from losing video frames caused by network delay, network interruption, or fluctuation.
