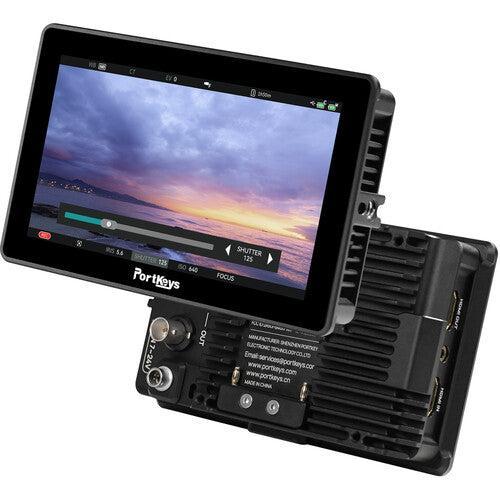

The Portkeys BM5 IV 5.5 Inch HDMI/SDI Touchscreen Monitor allows you to monitor your image and focus with precision, whether you're on location or in the studio. This ultra-bright monitor boasts a luminosity of 2000 cd/m² and features a wide color gamut, a robust aluminium construction, and both HDMI and 3G-SDI video inputs and outputs. It facilitates HDMI/SDI signal conversion and can deliver 3D LUTs via its SDI output port. Additionally, wired control is compatible with select cameras from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM, as well as the Tilta Nucleus-M wireless lens motors.

Flexible Colour Controls

The BM5IV uses three colour gamuts to calibrate your image properly: 100% REC.709, 85% P3-DCI, and 85% P3-D65. You can manually select your Log mode, toggle Log false colour, and select your custom false colour from 77colourss and 15 different segments. The monitor is ifactory-calibrateded with the option for users to create a 3D calibration LUT and an X-Rite colour probe.

Wired Camera & Motor Control

A micro-USB remote connection facilitates camera control with select camera models from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM using separately available cables. The BM5IV can also be used in tandem with your Tilta Nucleus N/M wireless focus system using its UART port for calibration and limit setting.

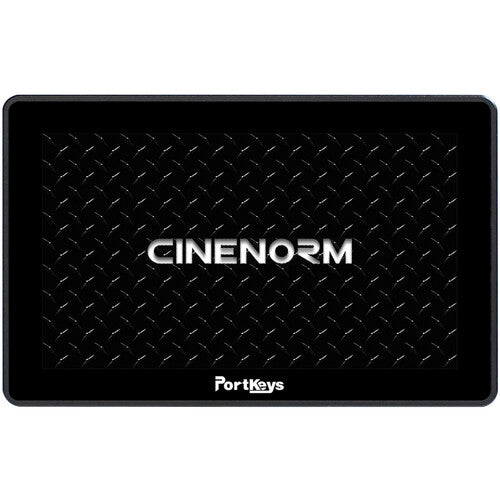

CINEFORM OS

CineForm OS powers the monitor and allows you to configure settings to suit your workflow. Import two sets of custom colour calibration files, create seven custom control pages, and save it all to the included micro-USB drive for import to another monitor and streamline your workflow.

Dual-Screen Monitoring

When taking in multiple camera signals via the HDMI and SDI input ports, you can select different dual-screen monitoring configurations to view both images simultaneously. Choose between horizontal to vertical crop, picture-in-picture, dual vertical, dual horizontal, and vertical/horizontal split views.

Connectivity

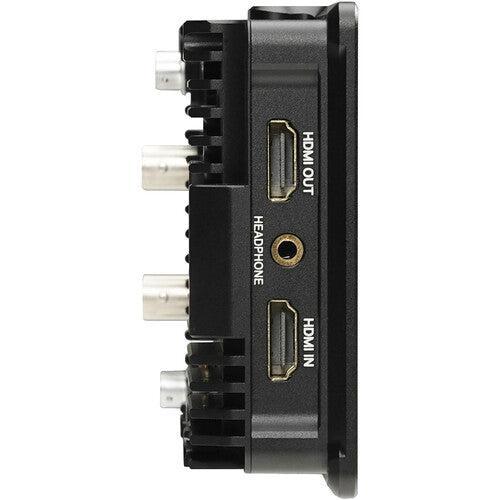

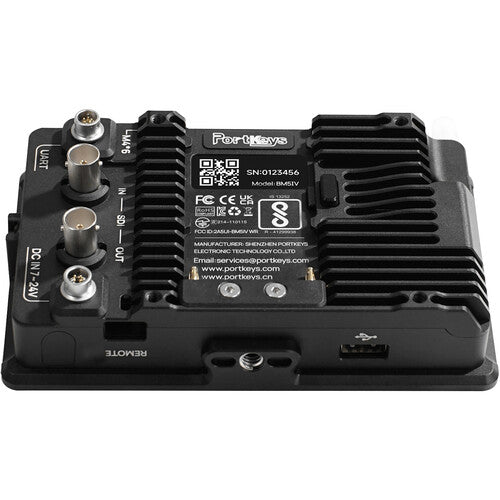

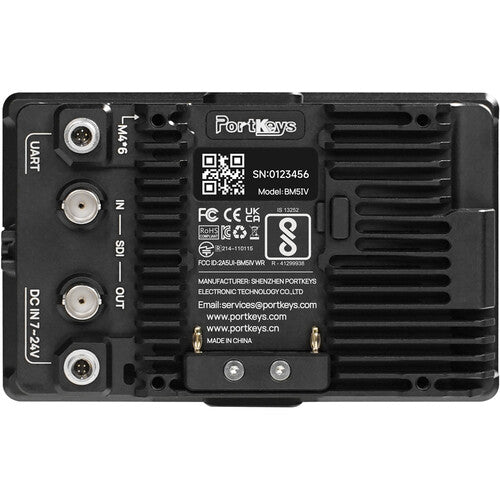

This upgraded BM5IV monitor features the same HDMI input, SDI input, and SDI output ports found on the previous model with the addition of an HDMI output, allowing you to convert signals with ease. The HDMI ports can support up to 4K60 video, while the SDI ports can support up to 1080p60 video. A USB-A port helps facilitate firmware updates and uploads 3D LUTs to the monitor.

Multiple Power Options

Use the 4-pin interface and included D-Tap cable to connect compatible power sources directly to the monitor. A built-in NP-F battery plate supports compatible batteries.

Robust Design

The monitor is constructed of durable aluminium alloy to withstand therigourss of production. The integrated fan can be set to switch to its lowest setting once the recording is toggled to minimize audio distortion.
