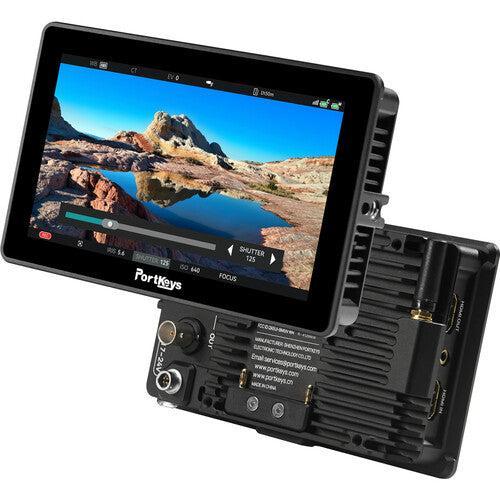

The PortKeys BM5IV WR 5.5-Inch HDMI/SDI Touchscreen Monitor with Camera Control is designed for both on-location and studio shooting, this monitor enables precise monitoring of your image and focus through its wired and wireless camera control features. The ultrabright display boasts an impressive 2000 cd/m² brightness, a broad colour gamut, and a robust aluminium construction, along with HDMI and 3G-SDI video inputs and outputs. It offers HDMI/SDI signal conversion and can output 3D LUTs via the SDI output port.

Wired control is compatible with select camera brands, including RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM, as well as the Tilta Nucleus-M wireless lens motors. Additionally, it supports wireless control using 2.4 GHz signals for compatible models from RED, ARRI, Nikon, Sony, Canon, and Panasonic.

Flexible Colour Controls

The BM5IV WR uses three colour gamuts to calibrate your image properly: 100% REC.709, 85% P3-DCI, and 85% P3-D65. You can manually select your Log mode, toggle Log false colour, and select your custom false colour from 77colourss and 15 different segments. The monitor is factory-calibrated with the option for users to create a 3D calibration LUT and an X-Rite colour probe.

CINEFORM OS

CineForm OS powers the monitor and allows you to configure settings to suit your workflow. Import two sets of custom colour calibration files, create seven custom control pages, and save it all to the included micro-USB drive for import to another monitor and streamline your workflow.

Dual-Screen Monitoring

When taking in multiple camera signals via the HDMI and SDI input ports, you can select different dual-screen monitoring configurations to view both images simultaneously. Choose between horizontal to vertical crop, picture-in-picture, dual vertical, dual horizontal, and vertical/horizontal split views.

Connectivity

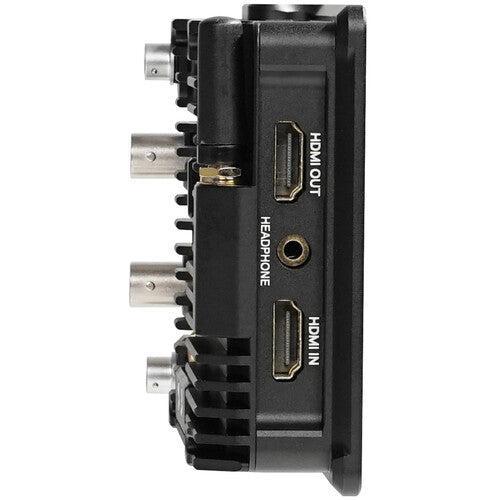

This upgraded BM5IV WR monitor features the same HDMI input, SDI input, and SDI output ports found on the previous model with the addition of an HDMI output, allowing you to convert signals with ease. The HDMI ports can support up to 4K60 video, while the SDI ports can support up to 1080p60 video. A USB-A port helps facilitate firmware updates and uploads 3D LUTs to the monitor.

Wired Camera & Motor Control

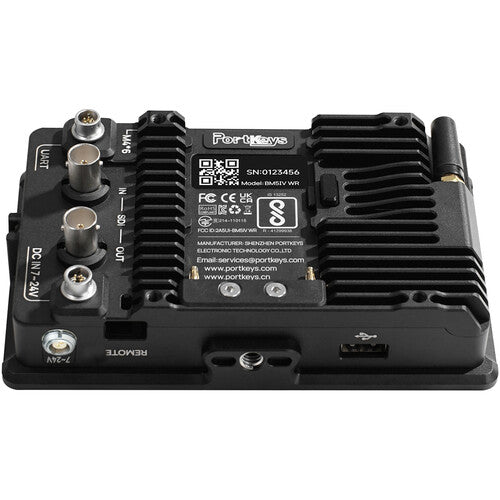

A micro-USB remote connection facilitates camera control with select camera models from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM using separately available cables. The BM5IV WR can also be used in tandem with your Tilta Nucleus N/M wireless focus system using its UART port for calibration and limit setting.

Wireless Control

An included 2.4 GHz antenna facilitates wireless communication with select camera models. The BM5IV WR is RED-approved and can connect to KOMODO/V-RAPTOR cameras to change settings directly from the monitor and perform touch-to-focus in real-time. Select Sony camera models also have touch focus capabilities and support zoom adjustment. The monitor can also wirelessly control the ARRI ALEXA Mini, Nikon Z8/Z9, Canon EOS R5/R6/R6 Mark II/R7/R8, and Panasonic BGH1/BS1H.

Multiple Power Options

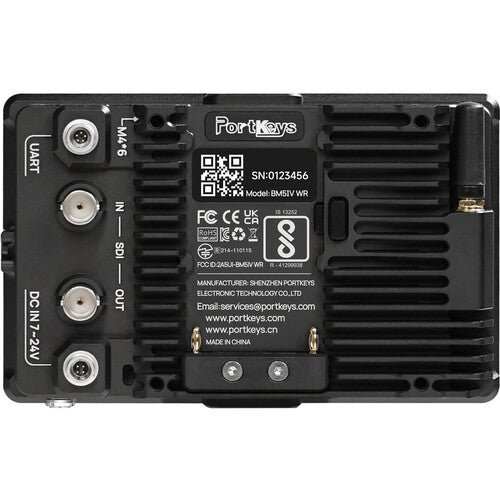

Use either the 2-pin LEMO port or the 4-pin interface and the included D-Tap cable to connect compatible power sources directly to the monitor. A built-in NP-F battery plate supports compatible batteries.

Robust Design

The monitor is constructed of durable aluminium alloy to withstand the rigours of production. The integrated fan can be set to switch to its lowest setting once the recording is toggled to minimize audio distortion.
