Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card

Blackmagic Design  |  SKU: BLA-BDLKHDEXTR4K12G  |  UPC: 9338716002881
$1,499.00 $1,645.00
Tax included Shipping calculated at checkout.

Shipping Options
Shipping Methods & Estimated Delivery Times
  •  Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
  •  Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
  •  StarTrack Express – 2–7 business days, depending on location.
  •  StarTrack Premium – Next business day between capital cities and major metro areas.
  •  Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

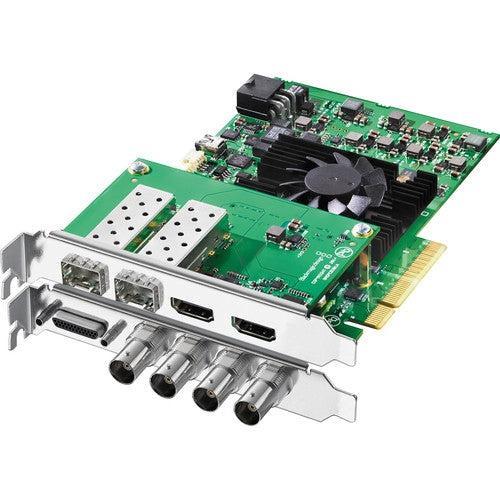

The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096x2160) at 60 fps.


The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.



Key Features:

  • 8-Lane PCIe Gen2 I/O card compatible with Mac, Windows, and Linux based workstations and servers
  • Multi-rate 12G-SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
  • Supports UHD 4K (3840x2160) and DCI 4K (4096x2160) up to 60 fps
  • Single and dual link 4:4:4:4/4:2:2 signals
  • 3D stereoscopic SDI output at full bandwidth 4:4:4:4
  • Up/down/cross conversions
  • 4 channels of balanced analog audio I/O, 2 channels of AES/EBU balanced audio I/O, genlock/tri-sync input, and Sony RS-422 deck control port via included breakout cable
  • Optional optical fiber modules for Dual Link optical fiber SDI input and output
  • Breakout cable adds S-Video, composite and component in/out and RS-422 control connectors
  • SD card with Media Express capture and playback software, and developer SDK for Windows, Mac, and Linux
