| LENS | Electric 12 x optical zoom F1.6ÔΩûF2.8 (f = 3.9 mm ÔΩû 46.8 mm) |
| General | - |
| MINIMUM ILLUMINATION | TBD |
| Zoom | Optical zoom: 12 x |
| Horizontal Resolution | TBD |
| Input/Output Connector | LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT |
| Storage Temperature | -20°C to 50°C (-4 °F to 122 °F) |
| VIDEO OUTPUT | HDMI, 3G-SDI OUT |
| Current consumption | TBD |
| Power Requirements | DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter) |
| Output Format | - |
| S/N | TBD |
| Quietness | NC40 or less |
| Tilting Range | -30°√√ª90° *3 |
| Ambient Operating Humidity | 20 ÔºÖ to 90 ÔºÖ (no condensation) |

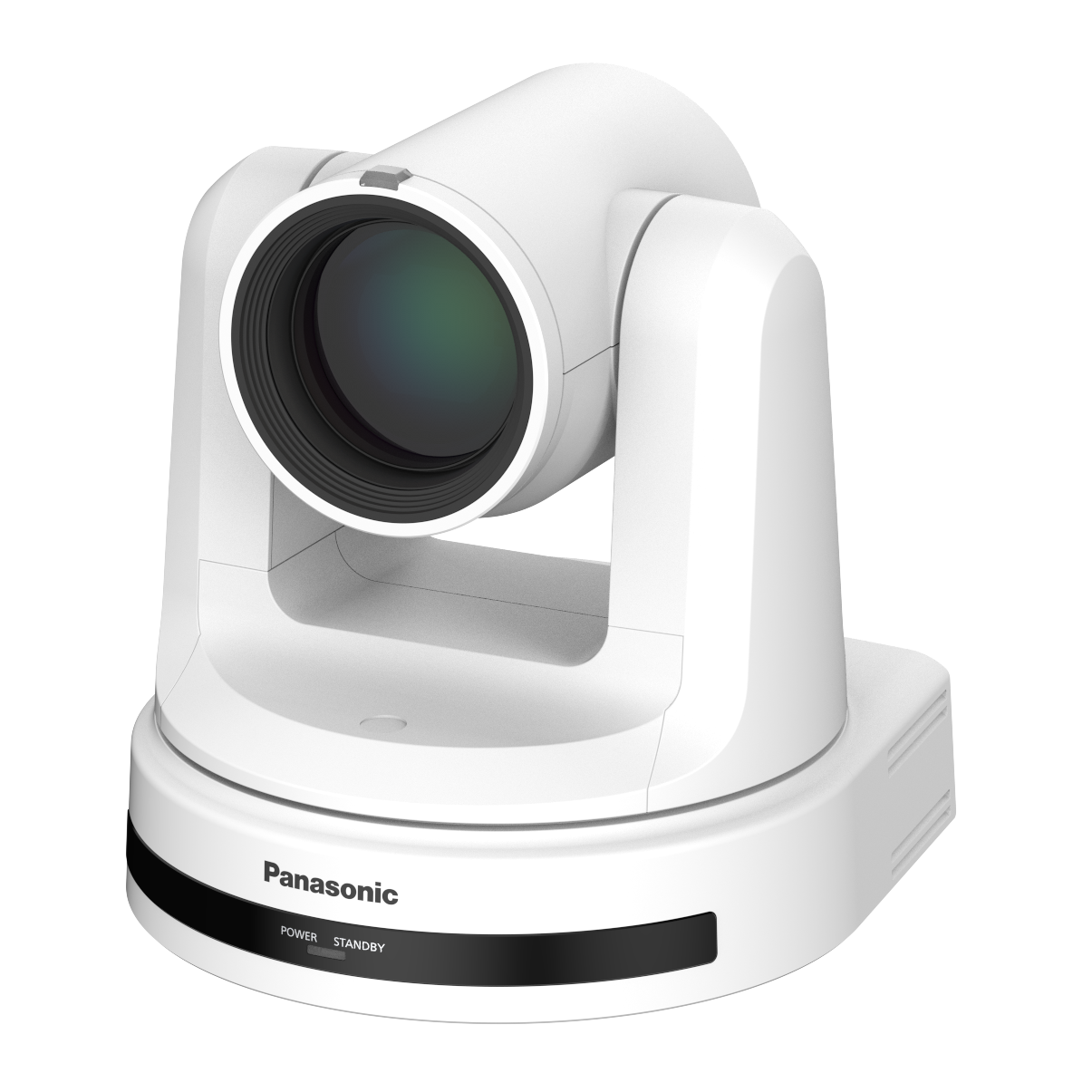

| Finish | AW-HE20W: WhiteAW-HE20K: Black |
| Image Resolution | 1920×1080, 1280×720, 640×360 |
| Panning range | ±170° |
| Camera Unit | - |
| Mass | TBD |
| INPUT | DC 12 V IN |
| OUTPUT | - |
| INPUT/OUTPUT | - |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*2 |
| Controller Supported | AW-RP150GJ, AW-RP60GJ, AW-RM50AG |
| Ambient Operating Temperature | 0 °C to 40 °C (32‚Äö√ë√¢ to 104‚Äö√ë√¢) |
| Angle of View Range | orizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele) |
| IP Streaming | - |
| Image Sensor | 1/2.8-type MOS×1 |
| PoE+ | IEEE802.3 at compliant |
| Pan Tilt Head Unit | - |
| Windows | Windows 10
Windows® Internet Explorer® 11√î¬∫√†32 bit / 64 bit√î¬∫√¢
Microsoft Edge
Google Chrome |
| Mac | Mac OS 10.15
Mac OS 10.14
Mac OS 10.13
Mac OS 10.12
Safari
Google Chrome |
| Supported operating systems and web browsers | *4 |
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265 |
| Output Format | SDI | HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p,
1080/25p, 720/60p, 720/59.94p, 720/50p |
| Output Format | HDMI | HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p,
1080/25p, 720/60p, 720/59.94p, 720/50p |
| Note | *1 The main unit may appear in the video depending on the pan/tilt position.
*2 To ensure safety, the unit must be secured using the mount bracket supplied.
*3 The main unit may appear in the video depending on the pan/tilt position.
*4 Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support. |
