Roland V02HD MK II Multi Format Streaming Video Mixer

Roland  |  SKU: ROL-V02HDMK2
$649.00 $750.00
Tax included Shipping calculated at checkout.

Shipping Options
Shipping Methods & Estimated Delivery Times
  •  Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
  •  Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
  •  StarTrack Express – 2–7 business days, depending on location.
  •  StarTrack Premium – Next business day between capital cities and major metro areas.
  •  Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

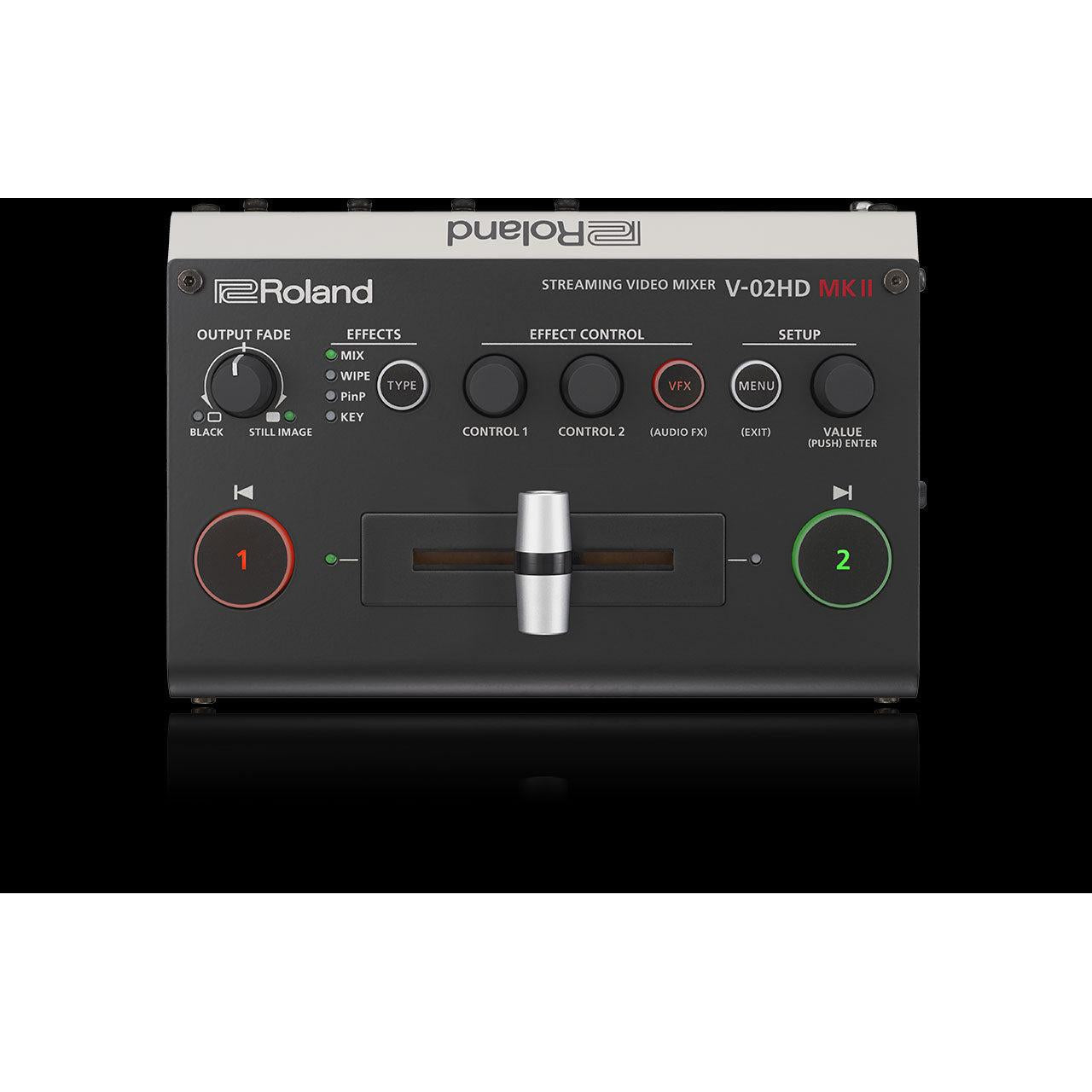

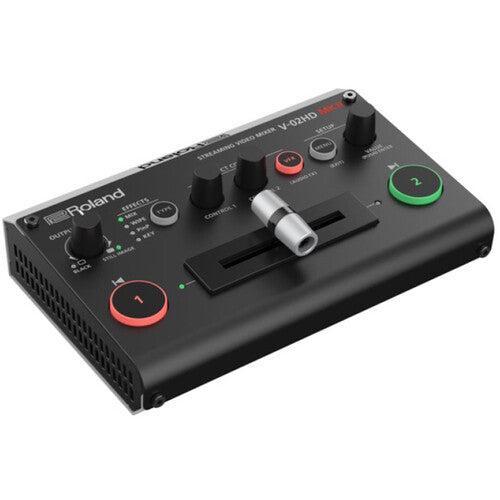

Step up your live streaming with the Roland V-02HD MK II Multi-Format Video Streaming Mixer. Simple and fast to set up and contro, it features easy switching  between two HDMI sources using push buttons, a T-bar, or an optional foot-pedal switch, and output via HDMI or USB Type-C for easy streaming from your Windows or Mac computer. This portable HD switcher is small enough to fit in your gear bag. It can be mounted onto a standard tripod, so it doesn't require a rack arrangement to use it on location. Its compact size and lightweight design make it well suited for use on mobile video productions.





Although small in size, the V-02HD MK II is loaded with features, including individual scalers on the input and both the program and preview output. The V-02HD MK II features a T-bar for smooth transitions, a graphics select knob, effects select, effects control, and a menu button. The switcher powers from an included AC power supply.



Switcher Features

  • The V-02HD MK II is a single unit that incorporates a simple switcher, a high-quality scaler, an input expander, an audio solution, and an inline video effects/compositor
  • It takes the HDMI output from two cameras and has both a preview and program HDMI output
  • A preview output enables you to view the menu without the overlay appearing on the program output
  • It features a built-in encoder that outputs your program output via the USB Type-C port, allowing you to stream easily from a computer without needing an additional encoder
  • Audio from both cameras and external sources can be mixed within the V-02HD MK II and monitored through a dedicated headphone output
  • The switched output is embedded in real time and output over HDMI for reliable recording or monitoring
  • The switcher operates with 10-bit 4:4:4 processing
  • Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions
  • You can embed and de-embed audio, both analog and digital
  • The V-02HD MK II has built-in three-band EQ and dynamics



Streaming Platforms

The USB output stream is recognized by your computer as a camera source, so it requires no additional encoding by your computer to stream to virtually any streaming platform, including Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, Streamlabs OBS, StreamYard, and Restream.



Audio Control

This video mixer also features a 10-channel digital audio mixer with full mixing functions for all audio sources, including the mixer's two 3.5mm stereo mic jacks that support powered or unpowered microphones. Mix audio from different sources, including microphones, audio from a smartphone, embedded audio, and other sources. The audio mixer functions enable adding studio polish to your program with compressor, EQ, and reverb effects. The unique voice changer effect allows you to have fun with format shifting and robot sounds. It's also possible to independently delay the audio inputs and outputs (including the headphone output) if you have any synchronization issues with your cameras.



Computer Control

Using the optional V-02HD MK II RCS application for either macOS or Windows allows you to control nearly all the functions of the mixer simultaneously using the same USB connection the mixer uses to send the program out to your computer for streaming. The application can run on your computer while it streams your video, so you can switch and stream your show while using only your computer.



iPad Remote App

Turn your iPad into an efficient touch interface for the V-02HD MK II with the dedicated V-02HD MK II Remote app. The app allows you to run essential switching functions, mix audio with virtual faders, change settings and effects parameters quickly, and create up to eight custom scenes for seamless setup changes, all from your iPad.


AeroCaster Switcher

With the V-02HD MK II, you get free access to Roland's AeroCaster Switcher for iPad, a powerful solution that enables you to wirelessly connect and switch up to five smartphone or tablet cameras, then output a combined program feed to the V-02HD MK II or another supported Roland switcher with an HDMI input.
