The Roland VR-4HD HD AV Mixer combines switching, audio mixing, and USB streaming into a single device. You get the four channels of HD video and 8 channels of audio can be mixed down with preview and program (main) video outputs with minimal fuss. Advanced digital processing removes many of the hurdles of a professional A/V setup, and consumer-friendly HDMI, VGA, composite, XLR/TRS, and RCA inputs support readily available video and audio equipment. The USB output lets you take advantage of HD video streaming over the web using popular streaming platforms or advanced multi-source videoconferencing and offers the ability to record straight to your hard drive for distribution.

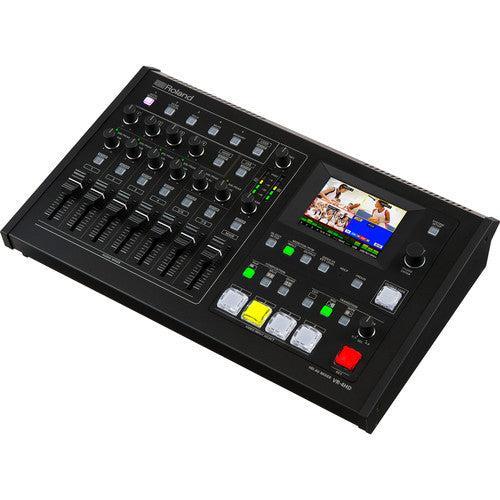

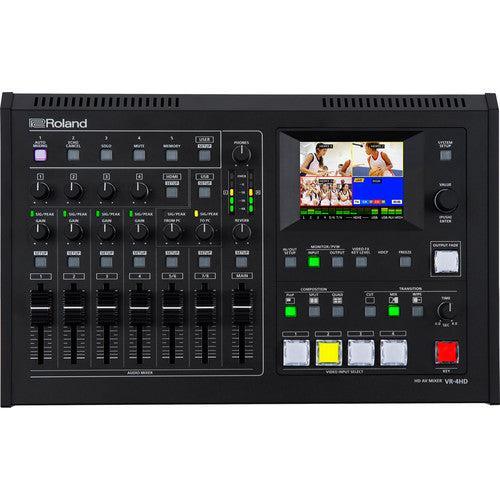

The interface on the VR-4HD features both tactile controls and a touchscreen for an intuitive and comprehensive control surface where all necessary controls are at the operator's fingertips. Physical faders offer precise audio adjustment, while the built-in multi-view LCD features a touch interface for accessing set-up parameters and adjusting picture-in-picture settings with simple swiping gestures.

Features:

• All-in-one portable production solution
• Easy to use thanks to dedicated hardware controls and audio faders as well as an integrated touch screen preview monitor
• 6-input, 4-Channel Video Switcher

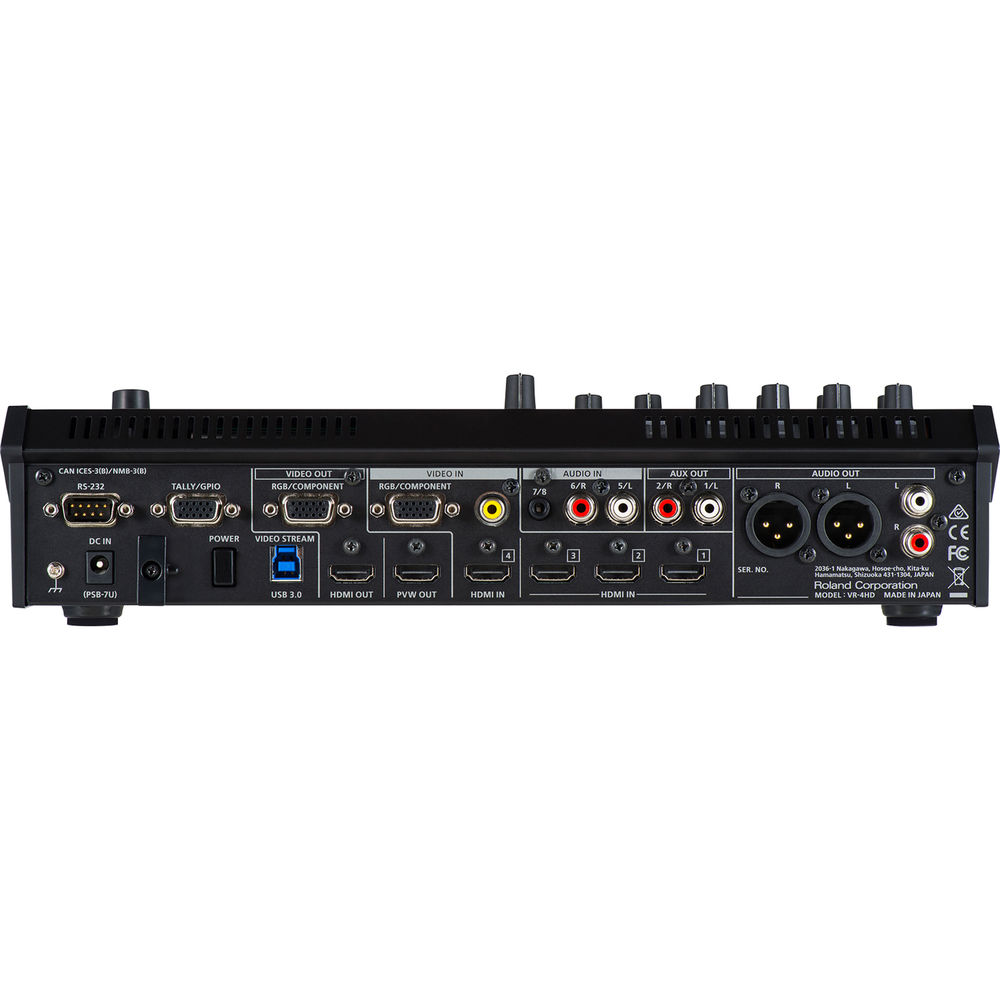

• Supports HDMI, RGB/component, and composite video inputs
• Built-in scaler on CH4

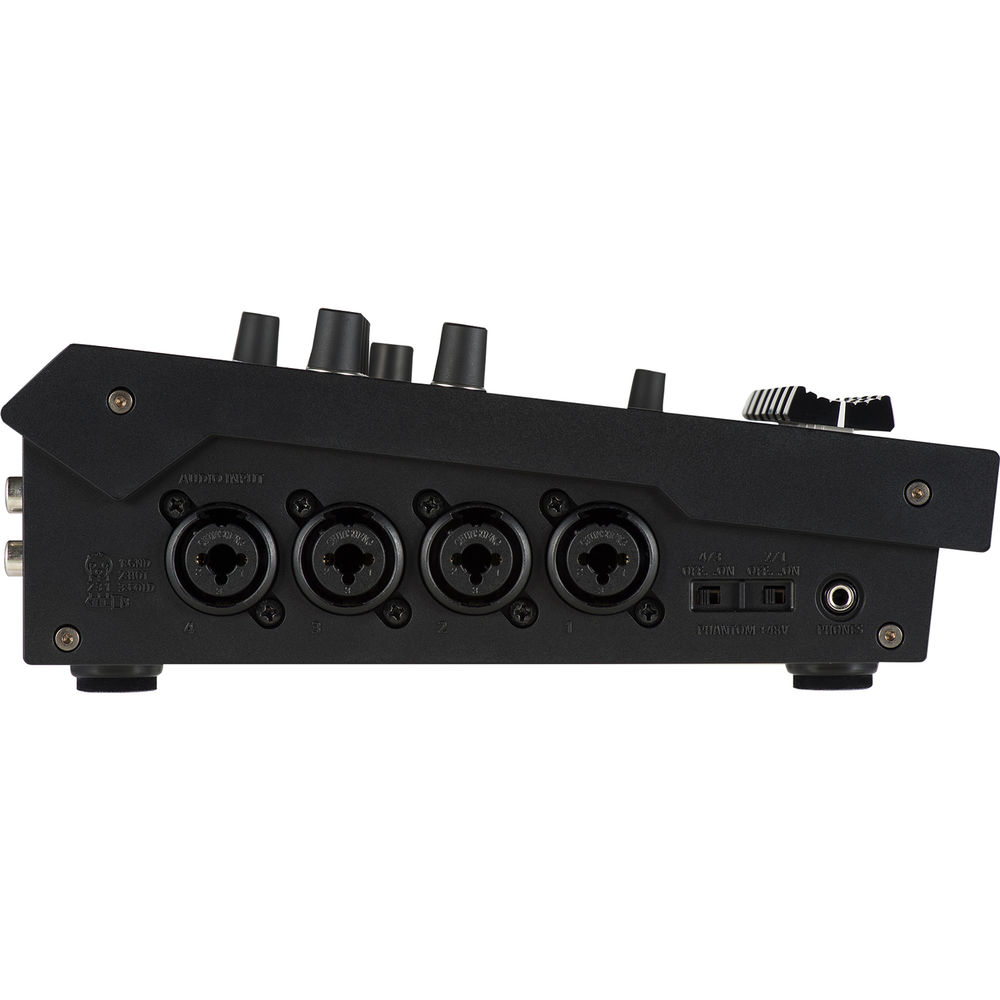

• 18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with embedded audio from HDMI inputs
• Embedding and de-embedding of audio with delay settings
• Auto mixing and Echo Canceling function
• Composition effects including DSK (Downstream Keyer), picture-in-picture, and more
• Built-in touchscreen quad-input multi-viewer with audio metering
• External Multi-View Output through HDMI
• HDCP Support
• USB 3.0 Video/Audio output up to 1080/30p
• Software control using VR-4HD RCS application for Mac and PC
• Tally, GPIO connections
