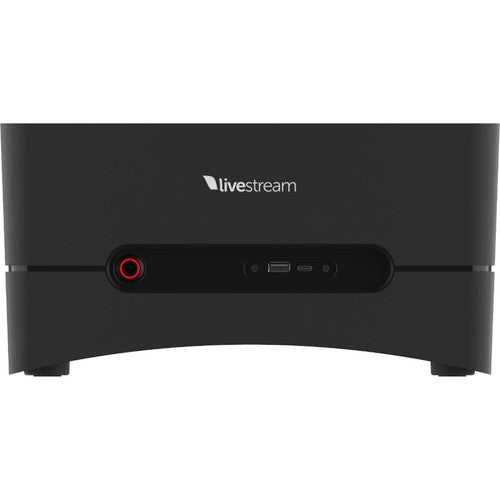

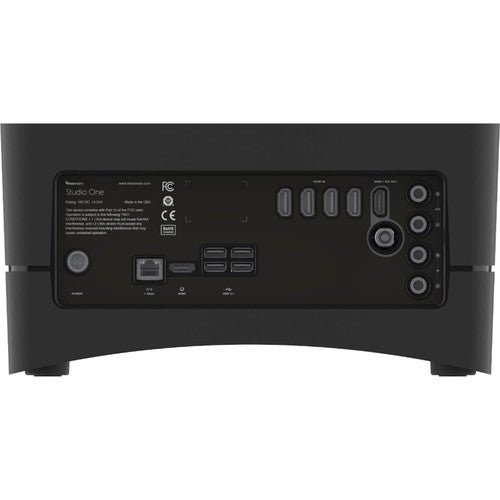

The Livestream Studio One UHD 4K with 2 x HDMI Inputs is an all-in-one 4K switcher with pre-installed Livestream Studio production software. Connect up to two HDMI or ten NDI sources, and stream to in-venue screens or to the web using the built-in multi-bit rate encoder via HDMI, Ethernet, or wireless using the built-in Wi-Fi capabilities. The Studio One 4K outputs 4K30 and can record up to 20 hours of broadcast-quality HD video. Also included is a 12-month telephone support plan, a configurable, color-coded Livestream production keyboard, and a mouse with mouse pad. The Studio One 4K supports embedded audio from HDMI and NDI input sources, as well as analog audio via two 1/4" inputs. Audio monitoring is available via a 3.5mm output.

The pre-installed Livestream Studio live production software provides a full-field rate multiview that displays all live inputs, graphics, and media players in real time. The multiview features audio monitoring for each input and audio PPM overlay with peak hold on all inputs and outputs. In terms of graphics, the Studio One 4K supports three graphic layers and two video media tracks. Two layers can be overlayed and mixed with transparency. Add text, images, live picture-in-picture, countdown graphics, and more.

New Features Studio 5 Software

• Vimeo Integration
• Simple mode
• Bring multiple Mevos into Studio as remote cameras over Wi-Fi or Ethernet
• Import any popular media format, loop clips, make playlists, add recordings as clips in the list, and export clips as .mp4 files for easy sharing
• Frame-accurate media playback and scrubbing
• Multiple simultaneous ISO recordings
• Multi-network bonding
• Built-in RTMP server
• Audio mixer with groups
• External multiview
• Dropbox integration
• NDI protocol support
