Sony HXC-FZ90 4K HDR Studio Camera (Neutrik, Body Only)

The Sony HXC-FZ90 is a high-performance 4K HDR studio camera designed for professional productions like broadcasts, live events, and studios. It boasts a large 2/3" 4K CMOS sensor for capturing stunning image quality, with the option for oversampled HD or UHD 4K resolution (requires a separate license). Please note that this is a body-only camera and does not include an electronic viewfinder (EVF) or onboard monitor.

Key Features:

• Superb Image Quality: 2/3-inch 4K CMOS sensor delivers exceptional detail and clarity.
• 4K HDR Capability: Capture vibrant High Dynamic Range (HDR) images with support for BT.2020 colour gamut and Sony's SR Live for HDR with HLG and S-Log 3. (Note: 4K license required)
• HD or 4K Flexibility: Achieve professional HD results at up to 60p or upgrade to UHD 4K with a license.
• Broadcast-Grade Connectivity: Neutrik connector allows connection to the optional HXCU-FZ90 CCU (Camera Control Unit) for extended operation and control.

Ideal for:

• Broadcast studios
• Live event production
• Corporate video production
• Houses of worship
• Educational institutions

2/3" 4K CMOS Sensor

The highly sensitive Sony 2/3" 4K CMOS sensor captures optimal HD images with 2000 TVL resolution that are down-converted from 4K.

Up to 1080p60 Video | Optional 4K License

The HXC-FZ90 natively supports 1080 HD video resolutions at rates up to 60p. UHD 4K imaging requires a separately available license for weekly, monthly, or permanent use. UHD 4K can be output directly via the 12G-SDI connection or using a HXCU-FZ90 CCU component.

Integrated Studio Operation

Easily integrated with your studio setup, the HXC-FZ90 offers simple iris, gain, and shutter control plus functions like Dynamic Focus and Focus Assist Indicator to help operators keep their images sharp.

Additional integration includes teleprompter data transmission and a Network Trunk connection for PTZ camera control.

Neutrik Connector to CCU

The Neutrik connector enables the HXC-FZ90 to fit into your existing infrastructure and supports single-mode fiber extension at distances up to 6.2 miles.

Live Event Capture

• This highly sensitive camera captures high-quality images for a variety of live events and offers a native 60p format for online streaming. The UMBRA dynamic contrast function provides focus assistance even in lower light settings.
• The intercom supports 5-pin XLR input and both 5-pin XLR and stereo mini-jack output for using your own headphones.

TLCS Function

Ideal for smaller productions without an assigned full-time shader, Sony's TLCS (Total Level Control System) extends the auto-iris function so that the iris, gain, and shutter are controlled automatically based on the brightness of your subject.

ARIA Function

Use the ARI (Automatic Restoration of Illumination Attenuation) to compensate for remote back focus, f-drop, and peripheral light loss. This internal processing feature uses metadata and is only available with select lenses.

Crisp Sports Coverage

HDR and 1080p standards aid in capturing crisp sports footage, and a plug-and-play fiber connection speeds your on-location setup.

Versatile Connectivity

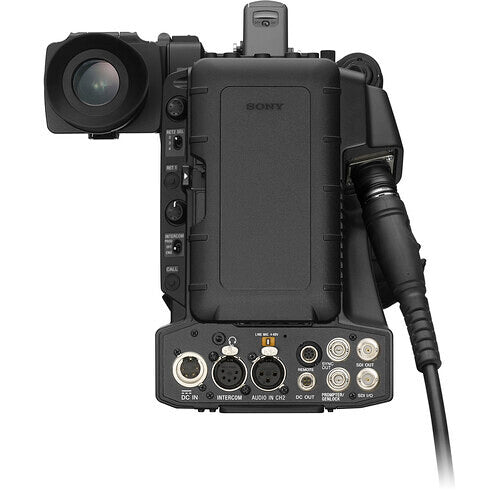

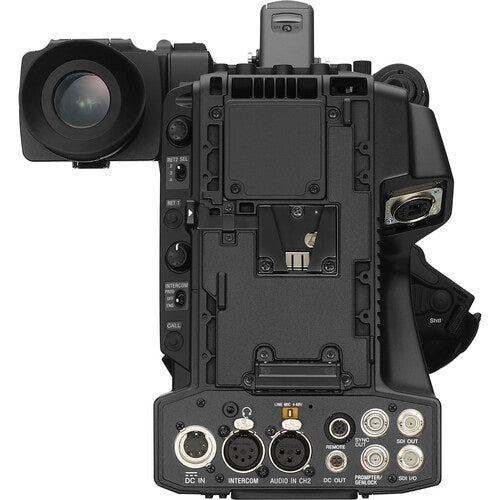

Versatile connectivity interface includes 8-pin RS-422, optical, BNC test output, BNC 3G/HD-SDI output, BNC HD prompter output/video trunk input, BNC prompter output/genlock input, DC output, DC input, dual XLR line/mic audio, and stereo mini earphone connectors.
